ChampionSteel Concept continues to demonstrate excellence in structural steel fabrication with this impressive roof truss system currently under construction. Designed for a substantial industrial or commercial building, this steel framework showcases our capability to deliver large-scale, high-performance structural solutions that meet the rigorous demands of modern Nigerian construction projects.

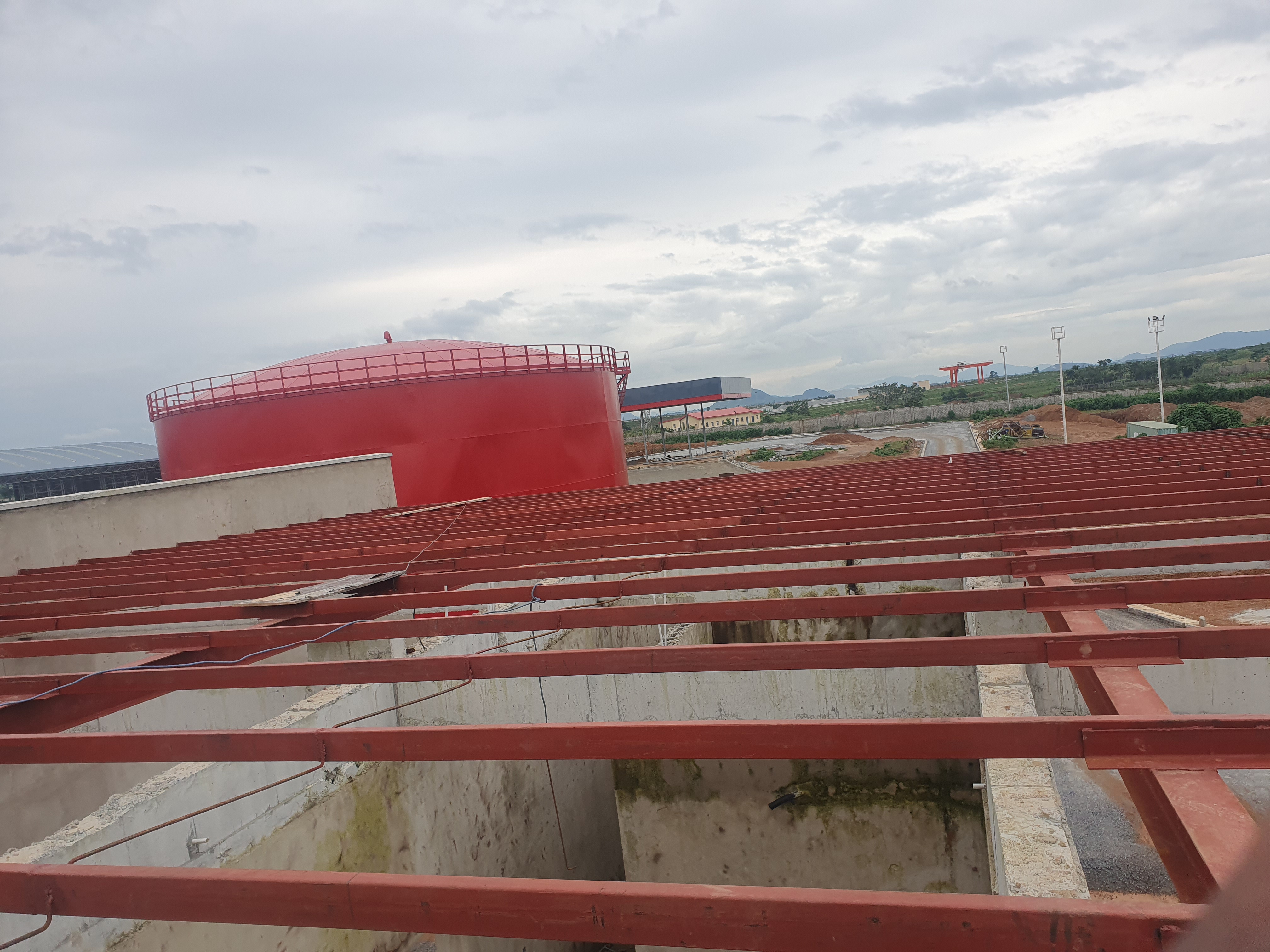

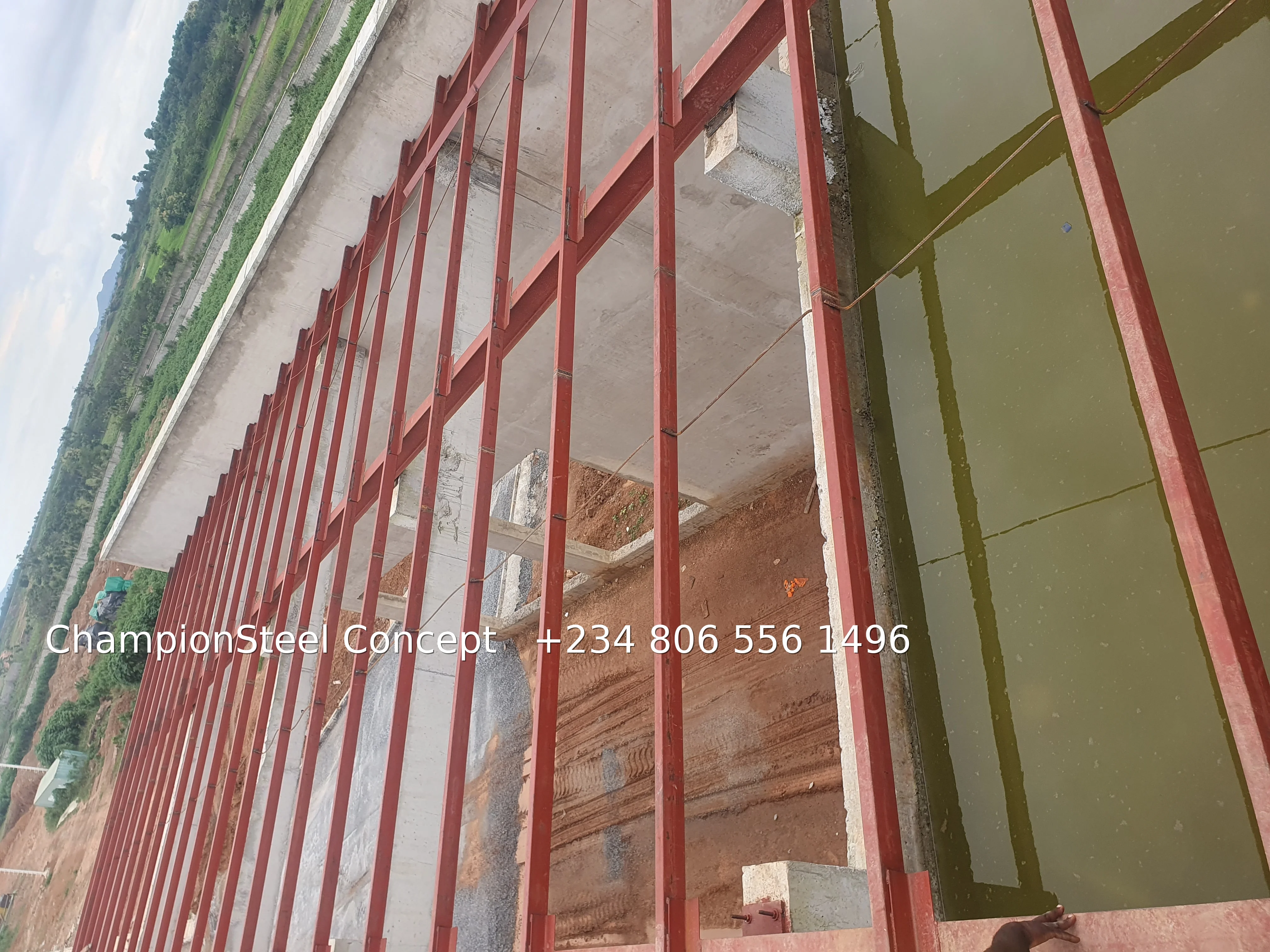

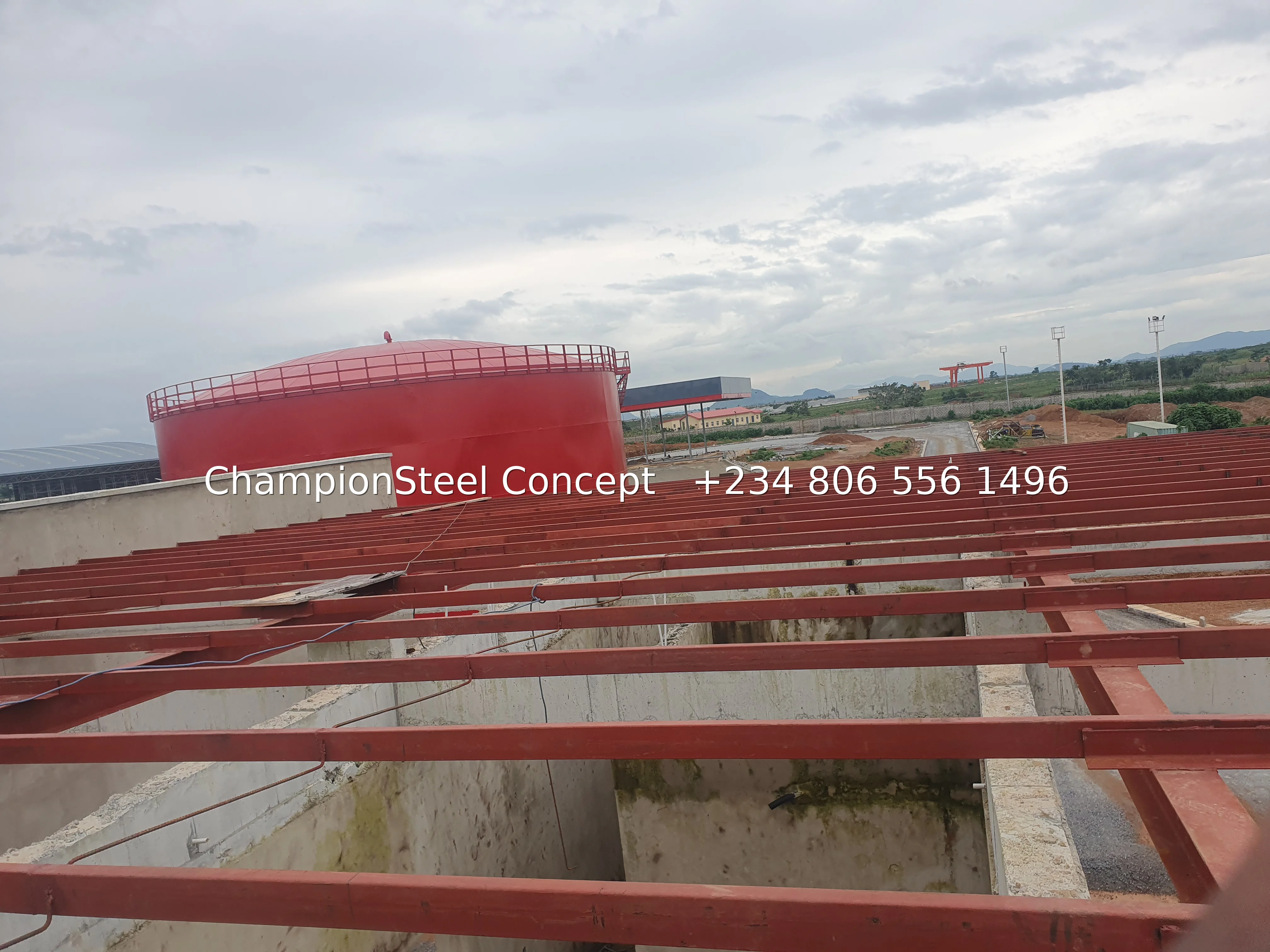

The structure consists of a comprehensive red-painted steel roof framing system installed atop reinforced concrete walls. It features a grid of heavy main beams running in both directions, supported by a dense network of secondary purlins. This configuration creates a strong, stable platform ready to receive roofing sheets (zinc, aluminum, or insulated panels). The bright red industrial coating not only provides excellent corrosion protection but also gives the entire framework a clean, professional appearance even during the construction phase.
Key Features & Engineering Highlights

Main Beams & Trusses: Fabricated from heavy-gauge mild steel sections, precisely cut, welded, and stiffened to handle significant dead and live loads (roofing materials, wind, rain, and potential equipment loads).
Purlin System: Closely spaced secondary purlins running perpendicular to the main beams, providing excellent support for the roof covering and minimizing deflection.
Connections: All joints are fully welded with gusset plates and stiffeners where necessary to ensure maximum rigidity and structural integrity.
Finish: High-quality industrial red paint system applied over primer for superior rust protection — specially chosen to withstand exposure to Abuja’s weather conditions, including intense sunlight, dust, and seasonal rainfall.
Integration: The steel framework is securely anchored and bolted to the concrete block walls and columns, creating a monolithic structure that works harmoniously with the building’s concrete base.
