Request QuoteCustom Metallic Stand for Elevated Water Tank
Custom fabrication of a metallic stand for an elevated water tank in a residential compound in Abuja. This 2011 project utilized sturdy steel framing with cross-bracing for secure support, ensuring stability and accessibility during installation, while integrating seamlessly with the surrounding urban environment for reliable water storage solutions.
Date
April 2017
Category
Tanks & Containers
Location
Abuja, Nigeria
Project Description

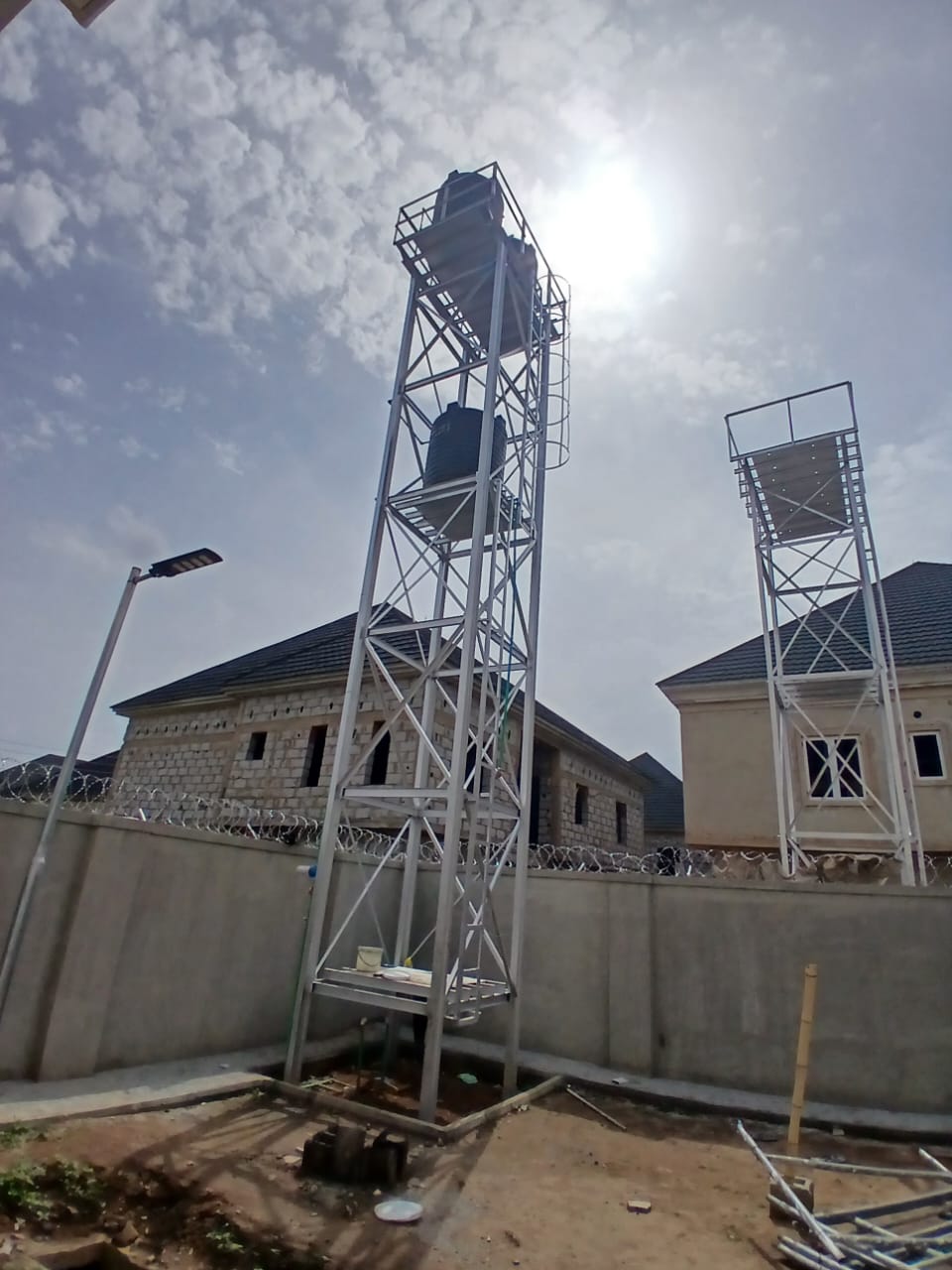

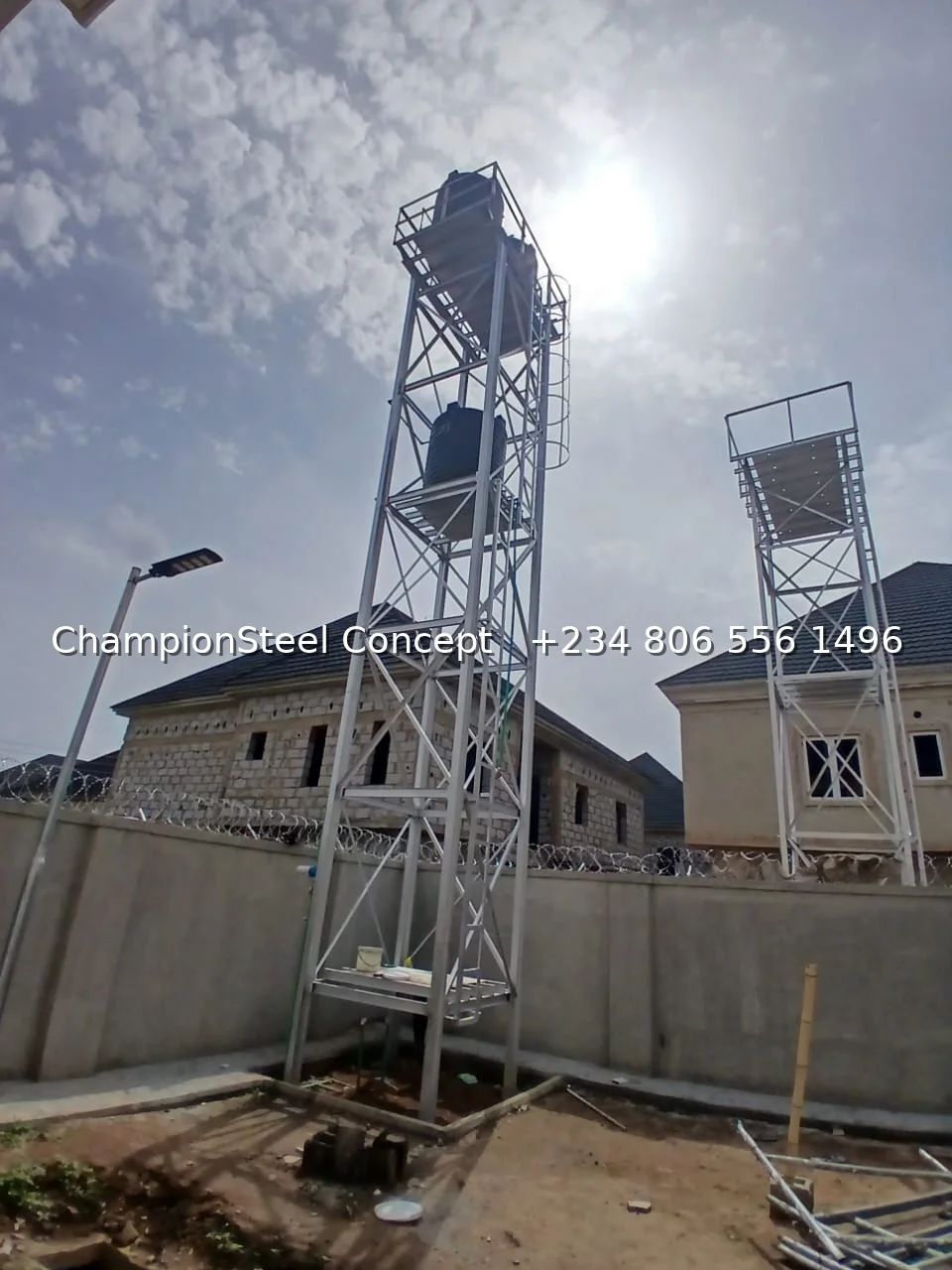

This project, delivered by Champion Steel Concepts in Abuja, Nigeria, illustrates our mastery in structural metal fabrication through the construction of a robust metallic stand designed to elevate and support a large water storage tank. Captured on April 7, 2017, from an overhead perspective during the assembly phase, the stand features a tall, ladder-integrated steel framework with horizontal platforms, vertical supports, and diagonal cross-bracing to distribute weight evenly and enhance seismic resistance. The structure hoists a cylindrical black polyethylene or fiberglass tank (commonly used for water in Nigerian households) to a height that facilitates gravity-fed distribution, positioned adjacent to a beige residential building with windows and a paved driveway where a blue sedan is parked beneath.
Project Highlights
Custom fabrication of a metallic stand for an elevated water tank in a residential compound in Abuja. This 2011 project utilized sturdy steel framing with cross-bracing for secure support, ensuring stability and accessibility during installation, while integrating seamlessly with the surrounding urban environment for reliable water storage solutions.
